RULE DIE STEEL
Top Quality That Drives Customer Satisfaction and Profits.

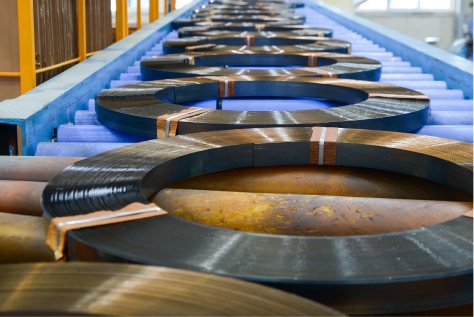

Product Image
Dimension
| PROFILE | DESCRIPTION | DIMENSION(mm) | APPLICATION |
|---|---|---|---|
 | Symmetric profile for single-layer cutting | 19 X 2.0 / 1.5 20 X 2.0 30 X 2.0 32 X 2.0 / 2.5 |  |
 | Double-edge profile for leather cutting | 19 X 2.0 / 2.5 /3.0 /4.0 20 X 2.0 30 X 2.0 / 2.5 32 X 2.0 / 2.5 | |
 | Basic type profile for single-layer cutting of leather or similar materials | 19 X 2.0 / 2.5 /3.0 /4.0 20 X 2.0 30 X 2.0 / 2.5 / 3.0 |  |
| 36 X 2.5 /3.0 / 3.5 43 X 2.5 /3.0 /3.5 /4.0 50 X 2.0 / 2.5 / 3.0 | |||
 | Textile profile for multi-layer cutting of soft materials | 19 X 2.0 / 2.5 32 X 2.0 / 2.5 50 X 2.0 / 3.0 |  |
 | Heavy-duty profile for back-clearing dies | 32 X 4.0 50 X 4.0 |  |
 | Serrated steel for garment, underwear and automotive | 19 X 2.0 / 2.5 20 X 2.0 / 30 x 2.0 / 2.5 32 X 2.0 / 2.5 |  |
 | Extra fine edge for cutting thin and soft material | 19 X 2.0 32 X 2.0 |  |
 | Smaller cutting edge, optimised for thin and rigid material | 32 X 1.8 |  |

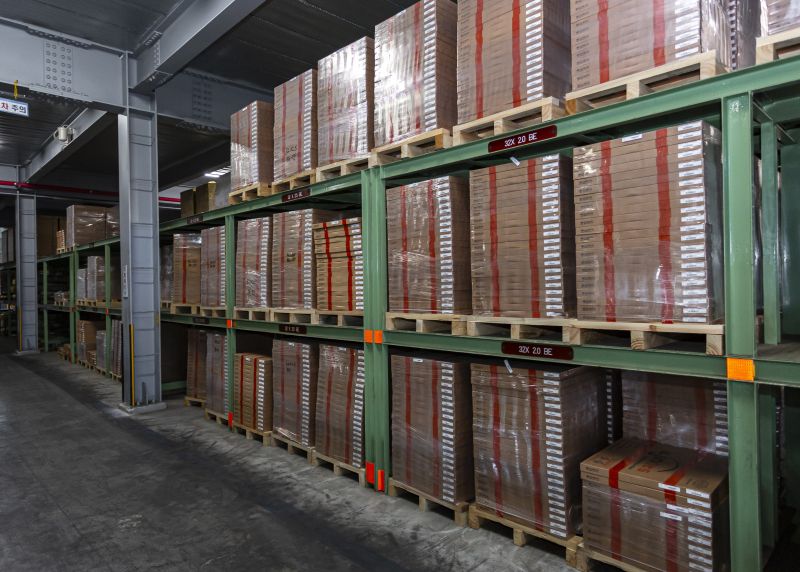

Packing / Lengtd
Weight
| DIMENSION(mm) | kg/m | DIMENSION(mm) | kg/m |
|---|---|---|---|
| 19×2.0 | 0.26 | 36×2.5 | 0.65 |
| 19×2.5 | 0.32 | 36×3.0 | 0.74 |
| 19×3.0 | 0.32 | 36×3.5 | 0.88 |
| 19×4.0 | 0.48 | 40×2.5 | 0.68 |
| 20×2.0 | 0.27 | 40×3.0 | 0.86 |
| 30×2.0 | 0.44 | 43×2.5 | 0.75 |
| 32×2.0 | 0.47 | 43×3.0 | 0.94 |
| 32×2.5 | 0.58 | 43×3.5 | 1.05 |
| 32×3.0 | 0.67 | 43×4.0 | 1.20 |
| 32×3.5 | 0.77 | 50×2.5 | 0.90 |
| 32×4.0 | 0.85 | 50×3.0 | 1.09 |

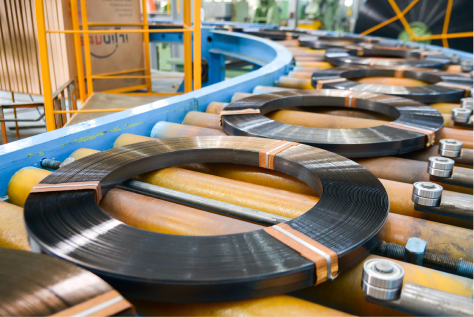

Maximum Coil Lengtd
| THICKNESS(mm) | LENGTH(m) | THICKNESS(mm) | LENGTH(m) |
|---|---|---|---|
| 1.5 | Max.80m | 3.0 | Max.80m |
| 2.0 | Max.80m | 3.5 | Max.70m |
| 2.5 | Max.100m | 4.0 | Max.60m |
Technology
Hardness
| THICKNESS(mm) | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
|---|---|---|---|---|---|---|---|
| Hardness | Body | ~Hv 380 | ~Hv 380 | ~Hv 360 | ~Hv 350 | ~Hv 330 | ~Hv 330 |
| Edge | HV 550±60 | ||||||
* Effective hardening depth of high frequency: 0.6 ~ 0.9mm
ILJIN rule die steel combines excellent bendability with ideal body hardness.
The HF-treated bevel guarantees an extra-long edge life.
Achieving flexible body hardness is one of our core technical know-hows.
Bendability
| THICKNESS(mm) | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
|---|---|---|---|---|---|---|---|
| Bendability(a) | 120° | 120° | 100° | 100° | 90° | 90° | |
* Based upon BE type
Even when severely bent to the angle shown above, with virtually zero bending radius, ILJIN rule die steel does not crack.
Achieving reliable performance under such delicately sharp bending conditions has been a key focus of our design and quality control.

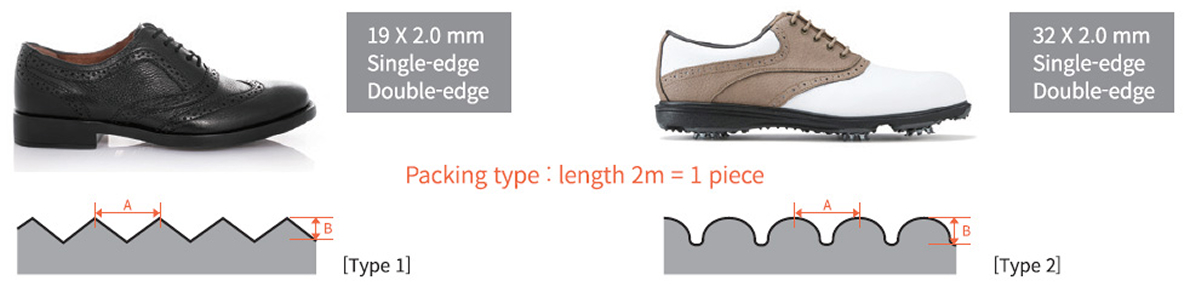

Gimp
Unit : mm
| TYPE NO. | A | B | EDGE TYPE |
|---|---|---|---|
| 1/3 | 3 | 1.2 | AE/AD |
| 1/4 | 4 | 1.6 | AE/AD |
| 1/5 | 5 | 1.8 | AE/AD |
| 1/6 | 6 | 2.4 | AE/AD |
| 2/3 | 3 | 1.0 | AE/AD |
| 2/4 | 4 | 1.4 | AE/AD |
| 2/5 | 5 | 1.6 | AE/AD |
| 2/6 | 6 | 1.8 | AE/AD |
| 2/8 | 8 | 2.5 | AE/AD |
| 2/10 | 10 | 3.0 | AE/AD |

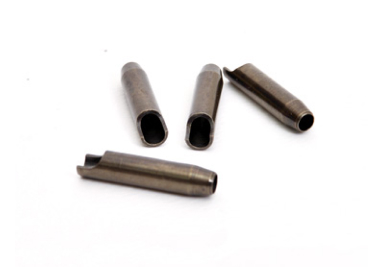

Perforating Tubes&Pricker

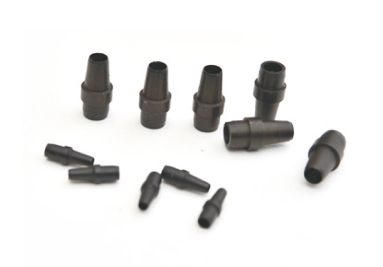

Shoulder Tube (Mill Punches)

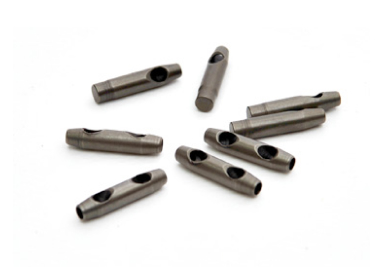

Single Edged Back Ejection

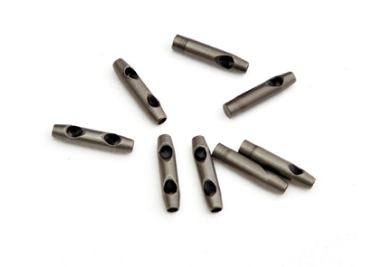

Single Edged Side Ejection
Double Edged Side Ejection
Bolt Punches
Needle Punches
Die Making
| NO. | NAME | PRODUCT SPECIFICATION |
|---|---|---|
| ILJIN NTS-001 | BENDING MACHINE | Size : (Big) 1200 x 770 X1160, (Small) 1000 X 800X 1130 Weight : (Big) 358kg, (Small) 247kg |
| ILJIN NTS-001-1 | BENDING TOOLS | Size : 19mm, 32mm, 43mm, 50mm Weight: 1.1kg, 1.2kg, 1.3kg, 1.4kg |
| ILJIN NTS-002 | ASSEMBLY TABLE | Size : 1200 X 610 X 1070 Weight: 194kg |
| ILJIN NTS-003 | CUTTING MACHINE (HYDRAULIC STYLE) | Size : 1350 X 850 X 1150 Weight: 200kg |
| ILJIN NTS-004 | CUTTING MACHINE (HAND STYLE) | Size : 400 X 300 X 560 Weight: 40kg |
| ILJIN NTS-005 | CODE MARKING MACHINE (FOOT STYLE) | Size : 300 X 400 X 900 Weight: 92kg |
| ILJIN NTS-006 | MATERIAL HANGING POLE | Size : 800 X 500 X 950 Weight: 20kg |
